Power Grid

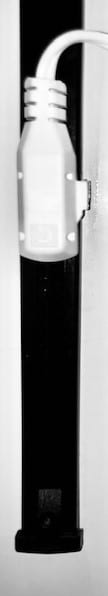

Description:  Our Twist-In Power System (TIPS) provides flexibility when meeting your lighting luminaire needs. Our unique “Twist-In Jumpers" (TIJ) can be located anywhere along our “Twist-In Power Grid" (TIPG) that can be mounted vertically or horizontally. Simply twist-in to connect, to pull the cable up from the power grid and twist-out to change locations.  Your lighting light fixture location changes  are easy with TIPs!

LEDingEDGE luminaires , drivers, junction boxes, twist-in  power grids and jumpers are all sold separately to give you the flexibility to meet your specific needs.

Twist-In Power System Features:

Current Capacity: Up to 5 amps

LED Driver Input: 100VAC to 277VAC.  Use only UL Listed Class 2 driver.

LED Driver Output: 12 or 24VDC

Warranty: 5 year limited warranty from manufacturing  defects

Certifications: LEDingEDGE  Lighting’s  Quality  Management  System is ISO 9001:2015 certified.

Safety Certifications: Luminaires  UL/cUL Listed & NSF approved; drivers are UL Listed.

Certifications: LEDingEDGE  Lighting’s  Quality  Management  System is ISO 9001:2015 certified.

Options:

Volts: 12 or 24 VDC

Twist-In Power Grid Lengths:   48” or 72”

Twist-In Power Grid Colors:   Black or White

Twist-In Power Grid Mounting Options: screws, tape, magnetic strip

Twist-In Jumper Lengths: 18”, 24”, 30”

Twist-In Jumper Colors: Black or White

Junction Boxes: 12v, 25w; 12v; 60w; 24v, 25w; 24v, 40w; 24v, 100w

Lights: See LEDingEdge light fixture pages or specification sheets for options available.

Mounting Brackets: See LEDingEdge mounting brackets page or specification sheets for options available.

Drivers: See LEDingEdge drivers page or specification sheets for options available.

strip2

Installing Tips

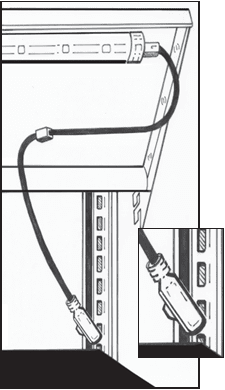

1. Install Twist-In Power Grid connected to a class 2 driver, onto back panels of store fixture.

2. Install LEDingEDGE luminaires onto the bottom of the shelf with brackets.

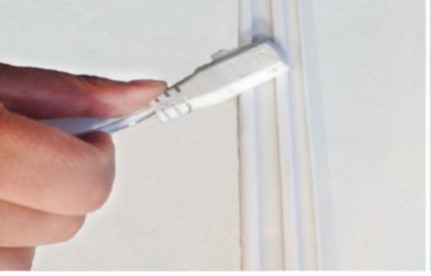

3. Install Twist-In Jumpers to Twist-In Power Grid, then plug the Jumper into the LEDingEDGE luminaire.
